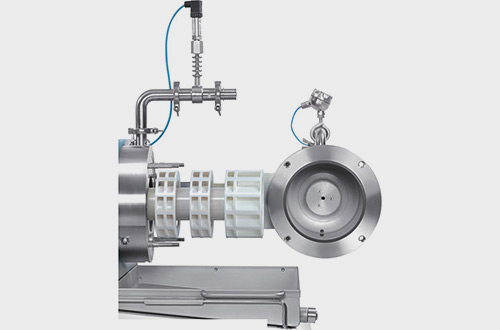

The DYNO^®-MILL  by WAB provides a wide range of wet grinding solutions for applications in the field of research, development, pilot and production etc.

It is mainly used in the grinding of nano-preparations (tablets or capsules, when the API reaches 150-250 nanometers, the dissolution of drugs is obviously improved) and grinding of coating paint for suspension injection, cell fragmentation, soft capsule, coating pigment and tablets. The mill has the following advantages.

• Continuous or discontinuous operation with a versatile laboratory mill attributable to different, easy-to-change grinding containers;

• Two grinding principles in one mill with either the KD agitator discs or the specifically designed DYNO-ACCELERATOR;

• The flexible grinding concept means that it is possible to scale up to all DYNO-MILL production mills that are based on the same principle;

• The ideal equipment for every product with the choice of the widest possible range of materials for the components that come in contact with the product-from hardened steel, stainless steel, tungsten carbide, zirconium oxide, silicon carbide, polyurethane, polyamide Teflon;

• Guaranteed long service life and no metal contamination with the use of high-quality ceramic components(SiC, ZrO2);

• Small process volume and ideal cooling properties permit the processing of temperature-sensitive products;

• Easy handling -the Mill can be dismantled and changed to a different mill configuration in a few simple operations;

• GMP-compliant design -very easy to clean with a minimum of cleaning fluid.

• Mill is easy to operate thanks to well-designed control system-quantifying and monitoring operational data with the modern WAB VIEW process control system.
